Hello everyone,
this will be a continuation or extension or something similar along those lines :) to the post I made a couple of years ago “ArubaOS-CX Static VXLAN Configuration (Part 1)”.
This time, we will configure it, utilizing BGP EVPN. This allows it to be more dynamic and easier to manage in larger networks.
For this, I will prepare a GNS3 Lab using the “ArubaOS-CX Simulation Software” 10.16.1006 and 10.13.1000 images. No particular reason for this, I just want to see if there are major differences. You can use either for everything.
We will create two switches in a VSX cluster and three additional single switches to test the connection. Also, we will add a few clients for the ping tests.
Keep in mind that you actually don’t need the VXLAN configuration on the switch-01 and vsx cluster, since in this example, they don’t participate in the vxlan communication. We technically just need them on the edge switches. But I think this makes it easier to understand, at least for me, and it’s to showcase the setup on a VSX cluster.

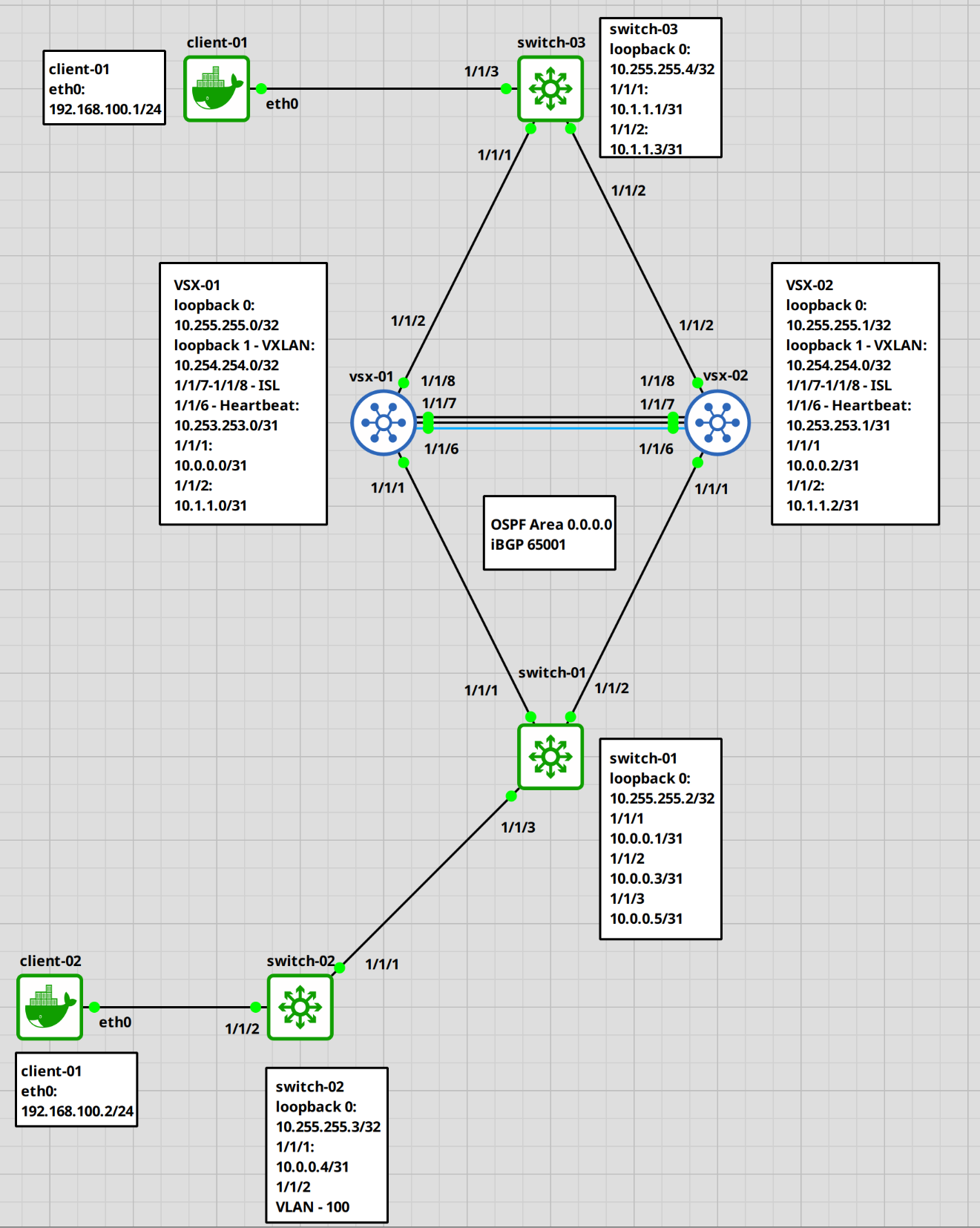

The following topology will be the setup.
Here a table with the information for each port.
| Hostname | loopback 0 | loopback 1 | 1/1/1 | 1/1/2 | 1/1/3 | 1/1/6 | 1/1/7,1/1/8 | eth0 |
|---|---|---|---|---|---|---|---|---|
| vsx-01 | 10.255.255.0/32 | 10.254.254.0/32 | 10.0.0.0/31 | 10.1.1.0/31 | ISL | |||
| vsx-02 | 10.255.255.1/32 | 10.254.254.0/32 | 10.0.0.2/31 | 10.1.1.2/31 | ISL | |||
| switch-01 | 10.255.255.2/32 | 10.0.0.1/31 | 10.0.0.3/31 | 10.0.0.5/31 | ||||
| switch-02 | 10.255.255.3/32 | 10.0.0.4/31 | VLAN 100 | |||||
| switch-03 | 10.255.255.4/32 | 10.1.1.1/31 | 10.1.1.3/31 | VLAN 100 | ||||
| client-01 | 192.168.100.1/24 | |||||||
| client-02 | 192.168.100.2/24 |
Let’s begin.
ArubaOS-CX Switch configuration
Setting up vsx-01 and vsx-02
VSX configuration
We will begin with the basic configuration and VSX set up on the “vsx-01” and “vsx-02” switches. I won’t go into too much detail on every step, otherwise this post would be several pages long. Also, I already have a post on the VSX configuration. Nothing changed since then (as far as I am aware).
A few important notes.
We need two loopback interfaces. One for the BGP / OSPF layer 3 setup which will be unique to each switch and one for the VXLAN VTEPs which will be the same on both switches.
## vsx-01# change the hostnameswitch# configure terminalswitch(config)# hostname vsx-01vsx-01(config)# # configure loopback 0vsx-01(config)# interface loopback 0vsx-01(config-loopback-if)# ip address 10.255.255.0/32vsx-01(config-loopback-if)# ip ospf 1 area 0.0.0.0 vsx-01(config-loopback-if)# description BGP-OSPFOSPF process does not exist.Do you want to create (y/n)? yOSPF Area is not configured.Do you want to create (y/n)? yvsx-01(config-loopback-if)# exit# configure loopback 1 for VXLANvsx-01(config)# interface loopback 1vsx-01(config-loopback-if)# ip address 10.254.254.0/32vsx-01(config-loopback-if)# ip ospf 1 area 0.0.0.0vsx-01(config-loopback-if)# description VXLAN-VTEPvsx-01(config-loopback-if)# exit# create LAG for ISLvsx-01(config)# interface lag 128vsx-01(config-lag-if)# no routingvsx-01(config-lag-if)# lacp mode activevsx-01(config-lag-if)# vlan trunk native 1vsx-01(config-lag-if)# no shutdownvsx-01(config-lag-if)# exit# add ports to LAGvsx-01(config)# interface 1/1/7-1/1/8vsx-01(config-if-<1/1/7-1/1/8>)# lag 128vsx-01(config-if-<1/1/7-1/1/8>)# mtu 9198vsx-01(config-if-<1/1/7-1/1/8>)# no shutdownvsx-01(config-if-<1/1/7-1/1/8>)# exit# create VRF for heartbeatvsx-01(config)# vrf VSX-HEARTBEAT# configure 1/1/6 for VSX heartbeatvsx-01(config)# interface 1/1/6vsx-01(config-if)# vrf attach VSX-HEARTBEATvsx-01(config-if)# no shutdownvsx-01(config-if)# ip address 10.253.253.0/31vsx-01(config-if)# exit# configure VSXvsx-01(config)# vsxvsx-01(config-vsx)# role primaryvsx-01(config-vsx)# system-mac aa:00:00:00:00:01vsx-01(config-vsx)# inter-switch-link lag 128vsx-01(config-vsx)# keepalive peer 10.253.253.1 source 10.253.253.0 vrf VSX-HEARTBEATvsx-01(config-vsx)# vsx-sync ospf bgp vsx-global static-routes evpn
Do the same for the second vsx switch, but adjust the IP, the vsx system-mac and role. I marked the relevant parts red.
## vsx-02# change the hostnameswitch# configure terminalswitch(config)# hostname vsx-02vsx-02(config)# # configure loopback 0vsx-02(config)# interface loopback 0vsx-02(config-loopback-if)# ip address 10.255.255.1/32vsx-02(config-loopback-if)# ip ospf 1 area 0.0.0.0vsx-02(config-loopback-if)# description BGP-OSPFOSPF process does not exist.Do you want to create (y/n)? yOSPF Area is not configured.Do you want to create (y/n)? yvsx-02(config-loopback-if)# exit# configure loopback 1 for VXLANvsx-02(config)# interface loopback 1vsx-02(config-loopback-if)# ip address 10.254.254.0/32vsx-02(config-loopback-if)# ip ospf 1 area 0.0.0.0vsx-02(config-loopback-if)# description VXLAN-VTEPvsx-02(config-loopback-if)# exit# create LAG for ISLvsx-02(config)# interface lag 128vsx-02(config-lag-if)# no routingvsx-02(config-lag-if)# lacp mode activevsx-02(config-lag-if)# vlan trunk native 1vsx-02(config-lag-if)# no shutdownvsx-02(config-lag-if)# exit# add ports to LAGvsx-02(config)# interface 1/1/7-1/1/8vsx-02(config-if-<1/1/7-1/1/8>)# lag 128vsx-02(config-if-<1/1/7-1/1/8>)# mtu 9198vsx-02(config-if-<1/1/7-1/1/8>)# no shutdownvsx-02(config-if-<1/1/7-1/1/8>)# exit# create VRF for heartbeatvsx-02(config)# vrf VSX-HEARTBEAT# configure 1/1/6 for VSX heartbeatvsx-02(config)# interface 1/1/6vsx-02(config-if)# vrf attach VSX-HEARTBEATvsx-02(config-if)# no shutdownvsx-02(config-if)# ip address 10.253.253.1/31vsx-02(config-if)# exit# configure VSXvsx-02(config)# vsxvsx-02(config-vsx)# role secondaryvsx-02(config-vsx)# system-mac aa:00:00:00:00:02vsx-02(config-vsx)# inter-switch-link lag 128vsx-02(config-vsx)# keepalive peer 10.253.253.0 source 10.253.253.1 vrf VSX-HEARTBEATvsx-02(config-vsx)# vsx-sync ospf bgp vsx-global static-routes evpn
Alright. If everything worked correctly, we should have an established VSX connection.
# check VSX statusvsx-02(config)# show vsx statusVSX Operational State--------------------- ISL channel : In-Sync ISL mgmt channel : operational Config Sync Status : In-Sync NAE : peer_reachable HTTPS Server : peer_reachableAttribute Local Peer------------ -------- --------ISL link lag128 lag128ISL version 2 2System MAC aa:00:00:00:00:02 aa:00:00:00:00:01Platform X86-64 X86-64Software Version Virtual.10.16.1006 Virtual.10.16.1006Device Role secondary primary
Everything is reachable and in sync. Fantastic.
BGP configuration
Let’s continue with the setup. Now we will take a look at the BGP configuration. We will stay on the VSX switches for now.
## vsx-01# configure BGPvsx-01(config)# router bgp 65001vsx-01(config-bgp)# bgp router-id 10.255.255.0# add switch-01 and switch-03 as a neighborvsx-01(config-bgp)# neighbor 10.255.255.2 remote-as 65001vsx-01(config-bgp)# neighbor 10.255.255.2 update-source loopback 0vsx-01(config-bgp)# neighbor 10.255.255.4 remote-as 65001vsx-01(config-bgp)# neighbor 10.255.255.4 update-source loopback 0# configure l2vpn evpnvsx-01(config-bgp)# address-family l2vpn evpnvsx-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.2 route-reflector-clientvsx-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.2 send-community extendedvsx-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.2 activatevsx-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.4 route-reflector-clientvsx-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.4 send-community extendedvsx-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.4 activatevsx-01(config-bgp-l2vpn-evpn)# exit-address-familyvsx-01(config-bgp)# exitvsx-01(config)#
On the vsx-02 switch, we just need to add a few configurations, the rest will be synced from the primary switch.
## vsx-02# configure BGPvsx-01(config)# router bgp 65001vsx-01(config-bgp)# bgp router-id 10.255.255.1# add the loopback 0 as an update sourcevsx-01(config-bgp)# neighbor 10.255.255.2 update-source loopback 0vsx-01(config-bgp)# neighbor 10.255.255.4 update-source loopback 0
Ok. We are almost done with the VSX switches.
VSX Cluster uplink configuration
Let’s set up the downstream links now.
## vsx-01# configure interface 1/1/1 to switch-01vsx-01(config)# interface 1/1/1vsx-01(config)# no shutdownvsx-01(config)# ip address 10.0.0.0/31vsx-01(config)# ip ospf 1 area 0.0.0.0vsx-01(config)# ip ospf network point-to-point# configure interface 1/1/2 to switch-03vsx-01(config)# interface 1/1/2vsx-01(config)# no shutdownvsx-01(config)# ip address 10.1.1.0/31vsx-01(config)# ip ospf 1 area 0.0.0.0vsx-01(config)# ip ospf network point-to-point
The same on vsx-02.
## vsx-02# configure interface 1/1/1 to switch-01vsx-02(config)# interface 1/1/1vsx-02(config)# no shutdownvsx-02(config)# ip address 10.0.0.2/31vsx-02(config)# ip ospf 1 area 0.0.0.0vsx-02(config)# ip ospf network point-to-point# configure interface 1/1/2 to switch-03vsx-02(config)# interface 1/1/2vsx-02(config)# no shutdownvsx-02(config)# ip address 10.1.1.2/31vsx-02(config)# ip ospf 1 area 0.0.0.0vsx-02(config)# ip ospf network point-to-point
Alright. The last step would be the VXLAN interface and evpn configuration.
VSX cluster VXLAN / EVPN configuration
First, let’s create a VLAN and configure the VXLAN interface.
For the route-target and rd, we could configure them manually, but from what I read, using the “auto” option is the recommended way of setting this up.
I have a simple explanation at the bottom for what the route-target and rd (route distinguisher). But, always check multiple sources for information. This is how I understood it.
## vsx-01# create vlan 100vsx-01(config)# vlan 100vsx-01(config-vlan-100)# exit# create vxlan 1 interfacevsx-01(config)# interface vxlan 1vsx-01(config-vxlan-if)# no shutdownvsx-01(config-vxlan-if)# source ip 10.254.254.0vsx-01(config-vxlan-if)# vni 100100vsx-01(config-vni-100100)# vlan 100vsx-01(config-vni-100100)# exit# configure evpnvsx-01(config)# evpnvsx-01(config-evpn)# vlan 100vsx-01(config-evpn-vlan-100)# rd autovsx-01(config-evpn-vlan-100)# route-target export autovsx-01(config-evpn-vlan-100)# route-target import auto
Again. Do the same for the vsx-02 switch. We only need to configure the vxlan 1 interface. The rest will be synced.
## vsx-02# create vxlan 1 interfacevsx-02(config)# interface vxlan 1vsx-02(config-vxlan-if)# no shutdownvsx-02(config-vxlan-if)# source ip 10.254.254.0vsx-02(config-vxlan-if)# vni 100100vsx-02(config-vni-100100)# vlan 100vsx-02(config-vni-100100)# exit
That’s it. We are done with the vsx cluster switches.
Next, we will configure the switch-01 through switch-03.
Setting up switch-01 through switch-03
Base configuration
Ok. We will do the basic setup first.
## switch-01# set hostnameswitch# configure terminalswitch(config)# hostname switch-01# configure loopback 0switch-01(config)# interface loopback 0switch-01(config-loopback-if)# ip address 10.255.255.2/32switch-01(config-loopback-if)# ip ospf 1 area 0.0.0.0# configure interfaces 1/1/1 - 1/1/3# uplink to vsx-01switch-01(config)# interface 1/1/1switch-01(config-if)# no shutdownswitch-01(config-if)# ip address 10.0.0.1/31switch-01(config-if)# ip ospf 1 area 0.0.0.0switch-01(config-if)# ip ospf network point-to-point# uplink to vsx-02switch-01(config)# interface 1/1/2switch-01(config-if)# no shutdownswitch-01(config-if)# ip address 10.0.0.3/31switch-01(config-if)# ip ospf 1 area 0.0.0.0switch-01(config-if)# ip ospf network point-to-point# uplink to switch-02switch-01(config)# interface 1/1/3switch-01(config-if)# no shutdownswitch-01(config-if)# ip address 10.0.0.5/31switch-01(config-if)# ip ospf 1 area 0.0.0.0switch-01(config-if)# ip ospf network point-to-point
Verify configuration
Let’s check the connectivity.
## switch-01# ping vsx-01switch-01(config)# ping 10.0.0.0PING 10.0.0.0 (10.0.0.0) 100(128) bytes of data.108 bytes from 10.0.0.0: icmp_seq=1 ttl=64 time=7.33 ms# ping vsx-02switch-01(config)# ping 10.0.0.2PING 10.0.0.2 (10.0.0.2) 100(128) bytes of data.108 bytes from 10.0.0.2: icmp_seq=1 ttl=64 time=24.3 ms
We should also see the vsx switches as OSPF neighbors.
## switch-01# check OSPF neighborswitch-01(config)# show ip ospf neighborsVRF : default Process : 1===================================================Total Number of Neighbors : 2Neighbor ID Priority State Nbr Address Interface-------------------------------------------------------------------------10.255.255.0 1 FULL 10.0.0.0 1/1/1 10.255.255.1 1 FULL 10.0.0.2 1/1/2
Ok. Now we can setup BGP.
Configure BGP on switch-01
## switch-01# configure bgpswitch-01(config)# router bgp 65001switch-01(config-bgp)# bgp router-id 10.255.255.2switch-01(config-bgp)# neighbor 10.255.255.0 remote-as 65001switch-01(config-bgp)# neighbor 10.255.255.0 update-source loopback 0switch-01(config-bgp)# neighbor 10.255.255.1 remote-as 65001switch-01(config-bgp)# neighbor 10.255.255.1 update-source loopback 0switch-01(config-bgp)# neighbor 10.255.255.3 remote-as 65001switch-01(config-bgp)# neighbor 10.255.255.3 update-source loopback 0switch-01(config-bgp)# address-family l2vpn evpnswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.0 route-reflector-clientswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.0 send-community extendedswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.0 activateswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.1 route-reflector-clientswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.1 send-community extendedswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.1 activateswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.3 route-reflector-clientswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.3 send-community extendedswitch-01(config-bgp-l2vpn-evpn)# neighbor 10.255.255.3 activateswitch-01(config-bgp-l2vpn-evpn)# exit-address-family
And the last few steps would be VLAN, EVPN and VXLAN.
Configure EVPN/VXLAN on switch-01
## switch-01# create vlan 100switch-01(config)# vlan 100# create and configure vxlan interfaceswitch-01(config)# interface vxlan 1switch-01(config-vxlan-if)# source ip 10.255.255.2switch-01(config-vxlan-if)# no shutdownswitch-01(config-vxlan-if)# vni 100100switch-01(config-vni-100100)# vlan 100# configure evpnswitch-01(config)# evpnswitch-01(config-evpn)# rd autoswitch-01(config-evpn)# route-target export autoswitch-01(config-evpn)# route-target import auto
And that’s that. The other two switches are basically the same setup, with a few differences like the IPs and interfaces.
## switch-02# set hostnameswitch(config)# hostname switch-02# configure loopback 0switch-02(config)# interface loopback 0switch-02(config-if)# ip address 10.255.255.3/32switch-02(config-if)# ip ospf 1 area 0.0.0.0# configure interface 1/1/1switch-02(config-if)# interface 1/1/1switch-02(config-if)# no shutdownswitch-02(config-if)# ip address 10.0.0.4/31switch-02(config-if)# ip ospf 1 area 0.0.0.0switch-02(config-if)# ip ospf network point-to-point# configure interface 1/1/2 (for client connection)switch-02(config-if)# interface 1/1/2switch-02(config-if)# no shutdownswitch-02(config-if)# no routingswitch-02(config-if)# vlan access 100# bgp configurationswitch-02(config-if)# router bgp 65001switch-02(config-bgp)# bgp router-id 10.255.255.3switch-02(config-bgp)# neighbor 10.255.255.2 remote-as 65001switch-02(config-bgp)# neighbor 10.255.255.2 update-source loopback 0switch-02(config-bgp)# address-family l2vpn evpnswitch-02(config-bgp-l2vpn-evpn)# neighbor 10.255.255.2 send-community extendedswitch-02(config-bgp-l2vpn-evpn)# neighbor 10.255.255.2 activateswitch-02(config-bgp-l2vpn-evpn)# exit# create vlanswitch-02(config)# vlan 100# create vxlan interfaceswitch-02(config)# interface vxlan 1switch-02(config-vxlan-if)# source ip 10.255.255.3switch-02(config-vxlan-if)# no shutdownswitch-02(config-vxlan-if)# vni 100100switch-02(config-vni-100100)# vlan 100switch-02(config-vni-100100)# exit# configure evpnswitch-02(config)# evpnswitch-02(config-evpn)# vlan 100switch-02(config-evpn-vlan-100)# rd autoswitch-02(config-evpn-vlan-100)# route-target export autoswitch-02(config-evpn-vlan-100)# route-target import auto
And switch-03.
## switch-03# set hostnameswitch(config)# hostname switch-03# configure loopback 0switch-03(config)# interface loopback 0switch-03(config-if)# ip address 10.255.255.4/32switch-03(config-if)# ip ospf 1 area 0.0.0.0# configure interface 1/1/1 (uplink vsx-01)switch-03(config-if)# interface 1/1/1switch-03(config-if)# no shutdownswitch-03(config-if)# ip address 10.1.1.1/31switch-03(config-if)# ip ospf 1 area 0.0.0.0switch-02(config-if)# ip ospf network point-to-point# configure interface 1/1/2 (uplink vsx-02)switch-03(config-if)# interface 1/1/2switch-03(config-if)# no shutdownswitch-03(config-if)# ip address 10.1.1.3/31switch-03(config-if)# ip ospf 1 area 0.0.0.0switch-02(config-if)# ip ospf network point-to-point# configure interface 1/1/3 (for client connection)switch-03(config-if)# interface 1/1/3switch-03(config-if)# no shutdownswitch-03(config-if)# no routingswitch-03(config-if)# vlan access 100# bgp configurationswitch-03(config-if)# router bgp 65001switch-03(config-bgp)# bgp router-id 10.255.255.4switch-03(config-bgp)# neighbor 10.255.255.0 remote-as 65001switch-03(config-bgp)# neighbor 10.255.255.0 update-source loopback 0switch-03(config-bgp)# neighbor 10.255.255.1 remote-as 65001switch-03(config-bgp)# neighbor 10.255.255.1 update-source loopback 0switch-03(config-bgp)# address-family l2vpn evpnswitch-03(config-bgp-l2vpn-evpn)# neighbor 10.255.255.0 send-community extendedswitch-03(config-bgp-l2vpn-evpn)# neighbor 10.255.255.0 activateswitch-03(config-bgp-l2vpn-evpn)# neighbor 10.255.255.1 send-community extendedswitch-03(config-bgp-l2vpn-evpn)# neighbor 10.255.255.1 activateswitch-03(config-bgp-l2vpn-evpn)# exit# create vlanswitch-03(config)# vlan 100# create vxlan interfaceswitch-03(config)# interface vxlan 1switch-03(config-vxlan-if)# source ip 10.255.255.4switch-03(config-vxlan-if)# no shutdownswitch-03(config-vxlan-if)# vni 100100switch-03(config-vni-100100)# vlan 100switch-03(config-vni-100100)# exit# configure evpnswitch-03(config)# evpnswitch-03(config-evpn)# vlan 100switch-03(config-evpn-vlan-100)# rd autoswitch-03(config-evpn-vlan-100)# route-target export autoswitch-03(config-evpn-vlan-100)# route-target import auto
Let’s check the VXLAN VTEPs.
Verify the VXLAN configuration
We can use the “show vteps” command, to list all the vteps discovered.
switch-01(config)# show interface vxlan vteps Source Destination Origin Status VNI Routing VLAN VRF ---------------- ---------------- ------------ --------------------- --------- --------- ----- ----------10.255.255.2 10.254.254.0 evpn operational 100100 disabled 100 -- 10.255.255.2 10.255.255.3 evpn operational 100100 disabled 100 -- 10.255.255.2 10.255.255.4 evpn operational 100100 disabled 100 --
Ok, we can see the VSX cluster, which is the single IP “10.254.254.0” and the two other switches. Let’s take a look at the evpn info.
switch-01(config)# show bgp l2vpn evpn summaryCodes: * Dynamic NeighborVRF : defaultBGP Summary----------- Local AS : 65001 BGP Router Identifier : 10.255.255.2 Peers : 3 Log Neighbor Changes : No Cfg. Hold Time : 180 Cfg. Keep Alive : 60 Confederation Id : 0 Neighbor Remote-AS MsgRcvd MsgSent Up/Down Time State AdminStatus 10.255.255.0 65001 40 46 00h:26m:38s Established Up 10.255.255.1 65001 43 46 00h:26m:38s Established Up 10.255.255.3 65001 38 43 00h:26m:40s Established Up
As a last test, we will assign ip addresses to the clients and test the connectivity.
Test the setup
Now, let’s assign the IPs to the clients. These are linux clients, adjust the commands acordingly if you should use different systems.
Set client IP
## client-01# assign IPclient-01 :: ~ » ifconfig eth0 192.168.100.1/24client-01 :: ~ » ifconfig eth0eth0 Link encap:Ethernet HWaddr d6:3b:e1:92:14:2f inet addr:192.168.100.1 Bcast:192.168.100.255 Mask:255.255.255.0 inet6 addr: fe80::d43b:e1ff:fe92:142f/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:93 errors:0 dropped:69 overruns:0 frame:0 TX packets:26 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:14870 (14.8 KB) TX bytes:2056 (2.0 KB)
## client-02# assign IPclient-02 :: ~ » ifconfig eth0 192.168.100.2/24client-02 :: ~ » ifconfig eth0eth0 Link encap:Ethernet HWaddr 12:09:9c:54:2f:02 inet addr:192.168.100.2 Bcast:192.168.100.255 Mask:255.255.255.0 inet6 addr: fe80::1009:9cff:fe54:2f02/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:91 errors:0 dropped:68 overruns:0 frame:0 TX packets:24 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:14614 (14.6 KB) TX bytes:1860 (1.8 KB)
Take a note of the mac address. We will check that later. Now we ping the peer.
Ping the peer client
## client-01# ping client-02client-01 :: ~ » ping 192.168.100.2PING 192.168.100.2 (192.168.100.2) 56(84) bytes of data.64 bytes from 192.168.100.2: icmp_seq=1 ttl=64 time=14.0 ms64 bytes from 192.168.100.2: icmp_seq=2 ttl=64 time=15.1 ms64 bytes from 192.168.100.2: icmp_seq=3 ttl=64 time=24.1 ms
Alright, we can take a look at the mac address table.
verify the mac addresses
switch-01(config)# show mac-address-tableMAC age-time : 300 secondsNumber of MAC addresses : 2MAC Address VLAN Type Port --------------------------------------------------------------12:09:9c:54:2f:02 100 evpn vxlan1(10.255.255.3)d6:3b:e1:92:14:2f 100 evpn vxlan1(10.255.255.4)
These are the two clients. We can also check this via the “show evpn” command.
switch-01(config)# show evpn mac-ipFlags: Local(L), Remote(R), Sticky bit(S)EVI MAC IP Next-hop Seq-Num Flags----------------------------------------------------------------------------------------------------------------------------------100100 12:09:9c:54:2f:02 vxlan1(10.255.255.3) 0 R100100 d6:3b:e1:92:14:2f vxlan1(10.255.255.4) 0 RMACs : 2Remote MACs : 2
Let’s take a look at, what it looks like on one of the edge switches.
switch-02(config)# show evpn mac-ipFlags: Local(L), Remote(R), Sticky bit(S)EVI MAC IP Next-hop Seq-Num Flags----------------------------------------------------------------------------------------------------------------------------------100100 12:09:9c:54:2f:02 0 L100100 d6:3b:e1:92:14:2f vxlan1(10.255.255.4) 0 RMACs : 2Remote MACs : 1
Here we can see that one of the clients is locally connected (marked red).
Add IP to VLAN on switch-03
If you are wondering, why the IP wont show up even though the column exists. We need at least one interface on the VLAN on one of the edge switches. Here an example.
## switch-03# configure vlan 100 interfaceswitch-03(config)# interface vlan 100switch-03(config-if-vlan)# ip address 192.168.100.253/24switch-03(config-if-vlan)# exit# Ping one of the clientsswitch-03(config)# ping 192.168.100.1PING 192.168.100.1 (192.168.100.1) 100(128) bytes of data.108 bytes from 192.168.100.1: icmp_seq=1 ttl=64 time=20.9 ms
Let’s check the evpn mac-ip again.
switch-03(config)# show evpn mac-ipFlags: Local(L), Remote(R), Sticky bit(S)EVI MAC IP Next-hop Seq-Num Flags----------------------------------------------------------------------------------------------------------------------------------100100 12:09:9c:54:2f:02 vxlan1(10.255.255.3) 0 R100100 d6:3b:e1:92:14:2f 0 L100100 d6:3b:e1:92:14:2f 192.168.100.1 0 LMACs : 2Remote MACs : 1
We can also see this on the other switches.
vsx-01(config)# show evpn mac-ipFlags: Local(L), Remote(R), Sticky bit(S)EVI MAC IP Next-hop Seq-Num Flags----------------------------------------------------------------------------------------------------------------------------------100100 12:09:9c:54:2f:02 vxlan1(10.255.255.3) 0 R100100 d6:3b:e1:92:14:2f vxlan1(10.255.255.4) 0 R100100 d6:3b:e1:92:14:2f 192.168.100.1 vxlan1(10.255.255.4) 0 RMACs : 2Remote MACs : 2
Great. We set up a VSX cluster, configured OSPF and BGP and created VXLAN interfaces, providing a layer 2 abstraction in a layer 3 network.
There is a lot of configuration required, to get this up and running, but once it’s done, its quite nice. It workes basically flawlessly, but it’s a lab. So yeah.
Here a quick explanation for a few of the terminologies.
Route Distingusher (RD)
The Idea of the RD is to separate otherwise identical routes. For example, we could have multiple VRFs with the same VLAN and the same IP subnet. The RD allows us, to keep them unique.Route Target (RT)
The RTs job is it, to tag the BGP routes, it attaches an Export Route Target to that route before advertising it to other VTEPs via BGP EVPN. This tag identifies the “community” or virtual network the route belongs to.For the import side. The receiving switch, checks the receiving routes RT against its local import RT list, to make sure that the traffic is forwarded for that network. If it fails, the switch ignores the route.
Switch configuration output
And here the plain configuration for each switch
vsx-01
[code lang=“diff”]
ssh server vrf mgmt vlan 1 vlan 100 vsx-sync interface mgmt no shutdown ip dhcp interface lag 1 multi-chassis no routing vlan access 1 lacp mode active interface lag 128 no shutdown no routing vlan trunk native 1 vlan trunk allowed all lacp mode active interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 10.0.0.0/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 10.1.1.0/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/6 no shutdown vrf attach VSX-HEARTBEAT ip address 10.253.253.0/31 interface 1/1/7 no shutdown mtu 9198 lag 128 interface 1/1/8 no shutdown mtu 9198 lag 128 interface loopback 0 description BGP-OSPF ip address 10.255.255.0/32 ip ospf 1 area 0.0.0.0 interface loopback 1 description VXLAN-VTEP ip address 10.254.254.0/32 ip ospf 1 area 0.0.0.0 interface vxlan 1 source ip 10.254.254.0 no shutdown vni 100100 vlan 100 vsx system-mac aa:00:00:00:00:01 inter-switch-link lag 128 role primary keepalive peer 10.253.253.1 source 10.253.253.0 vrf VSX-HEARTBEAT no split-recovery vsx-sync bgp evpn lldp neighbor ospf static-routes vsx-global ! ! ! ! ! router ospf 1 area 0.0.0.0 router bgp 65001 bgp router-id 10.255.255.0 neighbor 10.255.255.2 remote-as 65001 neighbor 10.255.255.2 update-source loopback 0 neighbor 10.255.255.4 remote-as 65001 neighbor 10.255.255.4 update-source loopback 0 address-family l2vpn evpn neighbor 10.255.255.2 route-reflector-client neighbor 10.255.255.2 send-community extended neighbor 10.255.255.2 activate neighbor 10.255.255.4 route-reflector-client neighbor 10.255.255.4 send-community extended neighbor 10.255.255.4 activate exit-address-family ! https-server vrf mgmt
[/code]
vsx-02
[code lang=“diff”]
ssh server vrf mgmt vlan 1 vlan 100 vsx-sync evpn vlan 100 rd auto route-target export auto route-target import auto interface mgmt no shutdown ip dhcp interface lag 128 no shutdown no routing vlan trunk native 1 vlan trunk allowed all lacp mode active interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 10.0.0.2/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 10.1.1.2/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/6 no shutdown vrf attach VSX-HEARTBEAT ip address 10.253.253.1/31 interface 1/1/7 no shutdown mtu 9198 lag 128 interface 1/1/8 no shutdown mtu 9198 lag 128 interface loopback 0 description BGP-OSPF ip address 10.255.255.1/32 ip ospf 1 area 0.0.0.0 interface loopback 1 description VXLAN-VTEP ip address 10.254.254.0/32 ip ospf 1 area 0.0.0.0 interface vxlan 1 source ip 10.254.254.0 no shutdown vni 100100 vlan 100 vsx system-mac aa:00:00:00:00:01 inter-switch-link lag 128 role secondary keepalive peer 10.253.253.0 source 10.253.253.1 vrf VSX-HEARTBEAT no split-recovery vsx-sync bgp evpn lldp neighbor ospf static-routes vsx-global ! ! ! ! ! router ospf 1 area 0.0.0.0 router bgp 65001 bgp router-id 10.255.255.1 neighbor 10.255.255.2 remote-as 65001 neighbor 10.255.255.2 update-source loopback 0 neighbor 10.255.255.4 remote-as 65001 neighbor 10.255.255.4 update-source loopback 0 address-family l2vpn evpn neighbor 10.255.255.2 route-reflector-client neighbor 10.255.255.2 send-community extended neighbor 10.255.255.2 activate neighbor 10.255.255.4 route-reflector-client neighbor 10.255.255.4 send-community extended neighbor 10.255.255.4 activate exit-address-family ! https-server vrf mgmt
[/code]
switch-01
[code lang=“diff”]
ssh server vrf mgmt vlan 1,100 evpn vlan 100 rd auto route-target export auto route-target import auto interface mgmt no shutdown ip dhcp interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 10.0.0.1/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 10.0.0.3/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/3 no shutdown mtu 9198 ip mtu 9198 ip address 10.0.0.5/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface loopback 0 ip address 10.255.255.2/32 ip ospf 1 area 0.0.0.0 interface vxlan 1 source ip 10.255.255.2 no shutdown vni 100100 vlan 100 ! ! ! ! ! router ospf 1 area 0.0.0.0 router bgp 65001 bgp router-id 10.255.255.2 neighbor 10.255.255.0 remote-as 65001 neighbor 10.255.255.0 update-source loopback 0 neighbor 10.255.255.1 remote-as 65001 neighbor 10.255.255.1 update-source loopback 0 neighbor 10.255.255.3 remote-as 65001 neighbor 10.255.255.3 update-source loopback 0 address-family l2vpn evpn neighbor 10.255.255.0 route-reflector-client neighbor 10.255.255.0 send-community extended neighbor 10.255.255.0 activate neighbor 10.255.255.1 route-reflector-client neighbor 10.255.255.1 send-community extended neighbor 10.255.255.1 activate neighbor 10.255.255.3 route-reflector-client neighbor 10.255.255.3 send-community extended neighbor 10.255.255.3 activate exit-address-family ! https-server vrf mgmt
[/code]
switch-02
[code lang=“diff”]
ssh server vrf mgmt vlan 1,100 evpn vlan 100 rd auto route-target export auto route-target import auto interface mgmt no shutdown ip dhcp interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 10.0.0.4/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/2 no shutdown no routing vlan access 100 interface loopback 0 ip address 10.255.255.3/32 ip ospf 1 area 0.0.0.0 interface vxlan 1 source ip 10.255.255.3 no shutdown vni 100100 vlan 100 ! ! ! ! ! router ospf 1 area 0.0.0.0 router bgp 65001 bgp router-id 10.255.255.3 neighbor 10.255.255.2 remote-as 65001 neighbor 10.255.255.2 update-source loopback 0 address-family l2vpn evpn neighbor 10.255.255.2 send-community extended neighbor 10.255.255.2 activate exit-address-family ! https-server vrf mgmt
[/code]
switch-03
[code lang=“diff”]
ssh server vrf mgmt vlan 1,100 evpn vlan 100 rd auto route-target export auto route-target import auto interface mgmt no shutdown ip dhcp interface 1/1/1 no shutdown mtu 9198 ip mtu 9198 ip address 10.1.1.1/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/2 no shutdown mtu 9198 ip mtu 9198 ip address 10.1.1.3/31 ip ospf 1 area 0.0.0.0 ip ospf network point-to-point interface 1/1/3 no shutdown no routing vlan access 100 interface loopback 0 ip address 10.255.255.4/32 ip ospf 1 area 0.0.0.0 interface vlan 100 ip address 192.168.100.253/24 interface vxlan 1 source ip 10.255.255.4 no shutdown vni 100100 vlan 100 ! ! ! ! ! router ospf 1 area 0.0.0.0 router bgp 65001 bgp router-id 10.255.255.4 neighbor 10.255.255.0 remote-as 65001 neighbor 10.255.255.0 update-source loopback 0 neighbor 10.255.255.1 remote-as 65001 neighbor 10.255.255.1 update-source loopback 0 address-family l2vpn evpn neighbor 10.255.255.0 send-community extended neighbor 10.255.255.0 activate neighbor 10.255.255.1 send-community extended neighbor 10.255.255.1 activate exit-address-family ! https-server vrf mgmt
[/code]
Hopefully this was helpful to you, it was a lot of fun for me and a good learning experience .
Thanks and till next time.
